Use a museum to Interpretate a city
Froms：Time：2018/1/2 15:24:00Hit：1092
Museum LED display Positioning
Every city has its own soul, every city has its own theme, the city's dreams revolve around a theme. This theme is the essence of the huge information on urban construction. The core is to provide a clear clue for the city developing.
Nowadays,LED display is the main way to show this clue. It can not only look back at the past and show nowadays, but also look to in the future.
Museum LED display characteristic

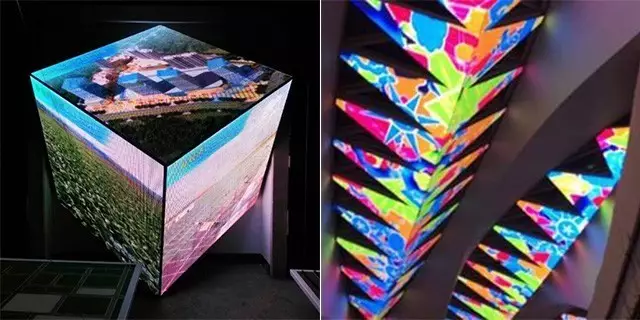

Firstly it need a unique structure. Reasonable installation all need to have a corresponding structure to meet the expectations for LED display. Such as curved display, we need to calculate the curvature of the site 's accurately angle.

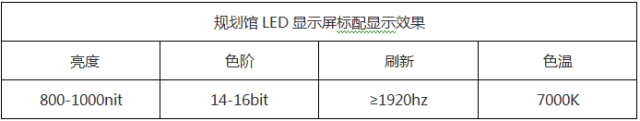

Secondly Museum LED display is requiry of low brightness and high gray products. Specially we need to design the low brightness and high-gray products, which ensure that the display brightness within 400nit and there are still 14 levels of grayscale.
Finally about integrated display control center. The museum is made up of multiple scenes. All of the scenes need to be centralized in one control center, which can ensure the displays content are more concise.
Museum LED display design principles
Pixel density design
Museum LED display's effective viewing distance is about 2m-16m. In order to have the best visual effects, WE need to choose the display screen size according to the equivalent retinal distance.
Mute
As the Museum in a confined space, which require high control for noise. LED display doesn't need cooling fan. The power supply is configured fanless mute power and edundant power configuration, which ensure the power's load less than 60%, so as to protect the museum has a quiet environment.
Consistency of large splicing
Splicing the display's unit module doesn't have black border and you can do large-size display splicing. At the same time, LED display can ensure the module brightness and color consistency, which can achieve the best full-screen display, horizontal and vertical perspective up to 120 °.
Light-weight design
In the indoor places, such as museum, the lightweight design is most important for LED display. LED display can be installed in any wall to meet the all places in museum.
System architecture
Museum will have more LED display, which only need one computer to control multiple displays at the same time. You can access various types of image input signals and display video screen information on the corresponding display timely and accurately.

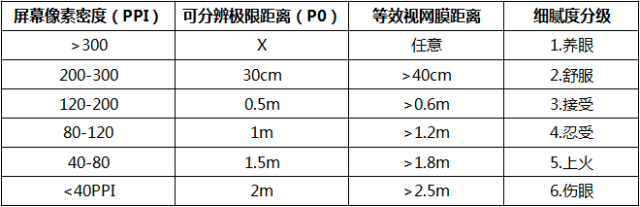

Planning Museum LED display effective viewing distance is generally 2m-16m, in order to allow viewers to have the best visual effects, you need to be based on the equivalent retinal distance to choose the size of the display screen spacing. Such as the average display distance of 9 meters, you can choose the distance of P3 LED display to meet the planning requirements of the museum. If the visual distance of 5 meters, you can choose P1.667 LED display to meet the display requirements.
Calculated as follows:
0.1 / 300 = X / 9000 (human eye resolution wiring / maximum resolution limit distance = LED display spacing / average visual distance)
X = 3; (the average visual distance of 9 meters in the LED display with P3 can give the audience the most eye-catching visual effects)
Mute
Planning Museum in a confined space, high noise control requirements. Traditional LCD and DLP stitching comes with cooling fans that generate heat while humming. LED display does not require cooling fan for cooling, the power is configured fanless mute power, redundant power configuration, to ensure that the power of the load is less than 60%, so as to protect the museum has a quiet environment.
3 large mosaic consistency
Compared with the traditional LCD and DLP splicing, LED display unit module splicing does not appear black border, you can do large-size display splicing. At the same time, LED display can ensure that the module brightness and color consistency, to achieve the best full-screen display. In viewing angle, LED display left and right and up and down perspective up to 120 °, completely covering all corners of the planning hall.
4. Lightweight design
In planning places such as indoor places, space is quite limited. In order to make more efficient use of space, the display's lightweight design is particularly important. LED display wall stickers can be installed, only 100mm thickness of the space can be installed in any wall LED display to meet planning all the venue installation of the display.

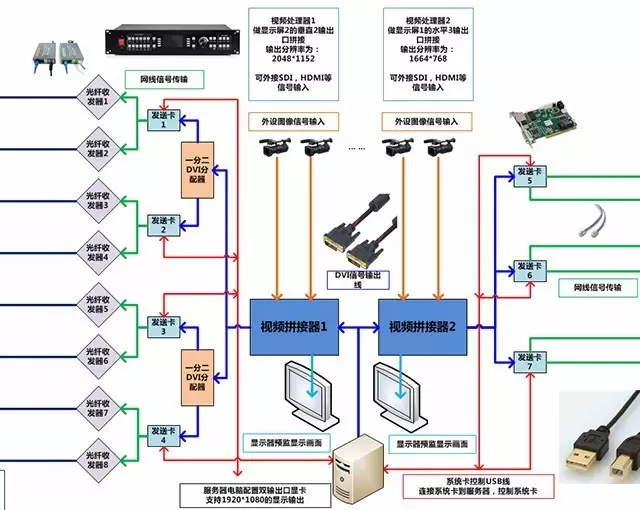

System architecture
Planning Museum will have more than one display, if the LED display control center design integrated control, then only one computer can control multiple displays at the same time, set to the system video processor can access All kinds of image input signal, timely and accurate video screen information on the corresponding display.
Planning Museum project other peripherals
Audio equipment
Audio configuration needs to be based on LED display and indoor environmental requirements to choose from. Depending on the use of the environment, the system needs to be designed: the most appropriate decibels, high fidelity transmission, the best clarity, uniform sound field distribution, the same audio and video and other technical requirements. As to how best to achieve the best results, the broadcast system department to make the best calculations, so that the display and audio equipment to achieve the best results.
2. lighting equipment
Lighting system design, configuration, function to meet the theme of the exhibition hall, give full consideration to the system's rationality, scalability, forward-looking and good price. Most importantly, light can render an atmosphere that blends in with the LED display to make the theme of the pavilion more vibrant and vivid.
What we can do for the planning pavilion project
Crystal color photoelectric has an excellent team, customers can provide multimedia planning, design, construction, after-sales integration solutions. To provide you with more professional, more standardized services. We are dedicated to demonstrating the perfect combination of technology and visual arts to create the ultimate experience for the dreams of the city. Let us together, paint a dream, preview a city.
Museum of ancient and modern millennium heart and dream
